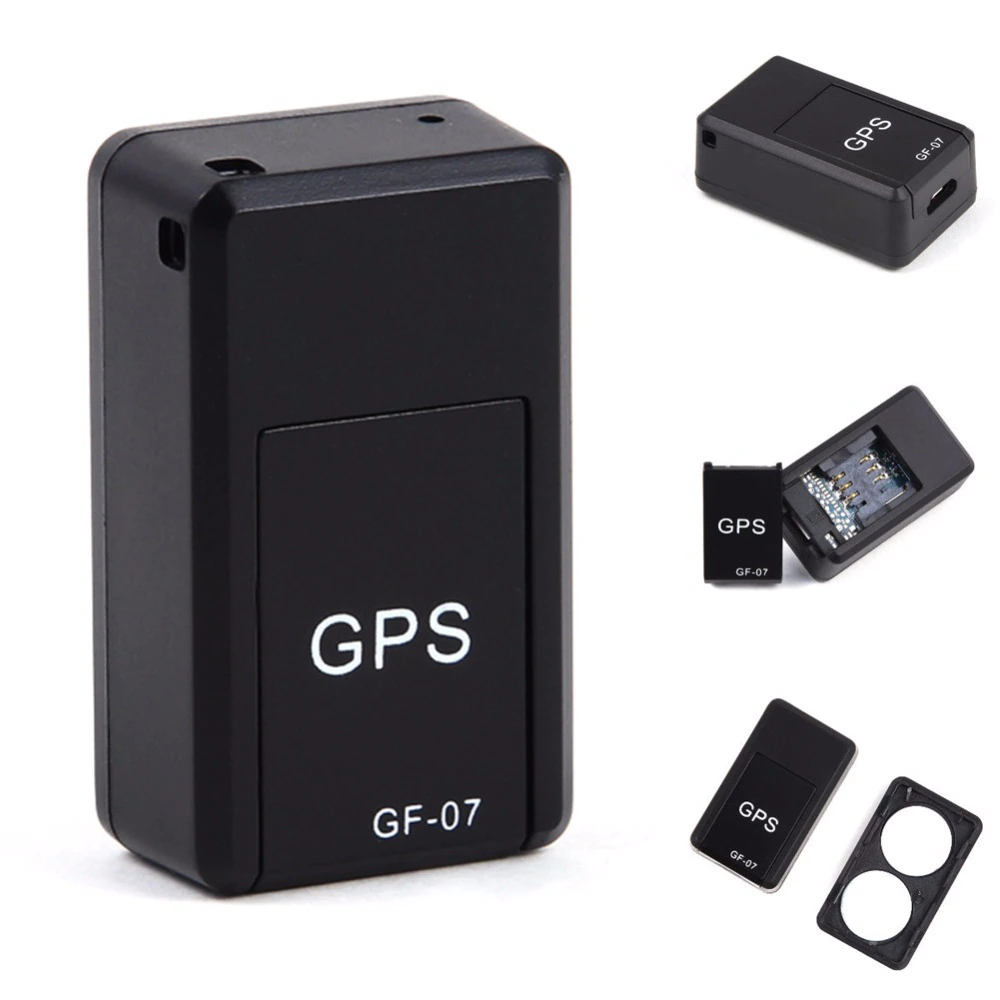

Mini GPS Tracker

GPS Tracker, Voice Monitoring and Tracking

product specification
Two ways to query You can check the location on the map with your mobile phone and query the location route on the computer platform, or you can directly reply to the location via SMS.

This product requires no platform fee and is free to use for life. Simply text the alert locator, and you can reply with address information and connect to Google Maps. The whole process is simple and easy to operate on the phone.

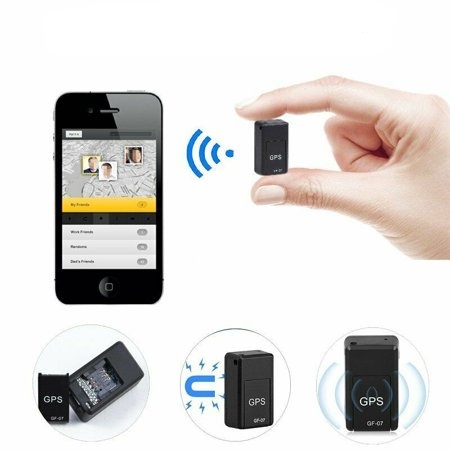

This product has built-in two strong magnets to absorb the function, you don't have to worry about the placement problem, as long as there is a metal place, you can put it directly, the magnet will automatically attach it, and it is more convenient to install and place it.

a description:
1. Charging input AC110-220V50/60Hz

2. Charging output: DC5.0V 300-500mA

3. Device battery: 3.7V 400mAh Li-ion battery

4. Standby time: 12 days. Working time 4-6 days

5. Continuous talk: 150-180 minutes

6. Network standard: GSM / GPRS

7. GPRS: Upload 60, TCP/IP

8. GSM positioning time: 25 seconds

Size: 35*20*14mm

9.Basic parameters: Frequency range GSM850/900/1800/1900MHz

Instructions for use
 Preparation: a contact phone card and a small memory stick

 Operation: Open the card sleeves and insert the calling card into the card slot. After inserting the memory, it will automatically turn on and the light will flash

Red 4 times and goes out to normal standby after 30 seconds. [Note: Do not read the memory card and insert it again]

 Indicator: Indicator indicator: The power indicator is on 4 times and the low battery indicator flashes

opcodes
Send the code 000 in a short message to the device number, and it will reply successfully

 Send the code 555 in a short message to record a sound in a memory.

 Send code 666 in a short message when the phone is greater than 40db, the locator will automatically call the mobile phone number

 Send the code 777 in a short message to query a location, the device will respond with the geographical location and the Google Maps link in the mobile phone. After the mobile phone opens this link, the location map and address description will appear.

Send code 102 in SMS Locate the query, the device will reply on a mobile phone with [account number and password] and log in to a website;

 Sending code 445 in an SMS delete the contents of the memory stick. You will reply to the mobile phone with [cleaning successful, current capacity]

SMS code 888 host later, capacity, etc.].

Send the code 999 in an SMS Reset the host computer

Send code 444 in short message to turn off and display power on the message and then the unit starts to answer the mobile phone, [Reset; All missions cancelled.]
